| 모델명/다운로드 | 제품 이미지 | 접점구조 | 정격접점용량 |
|---|---|---|---|

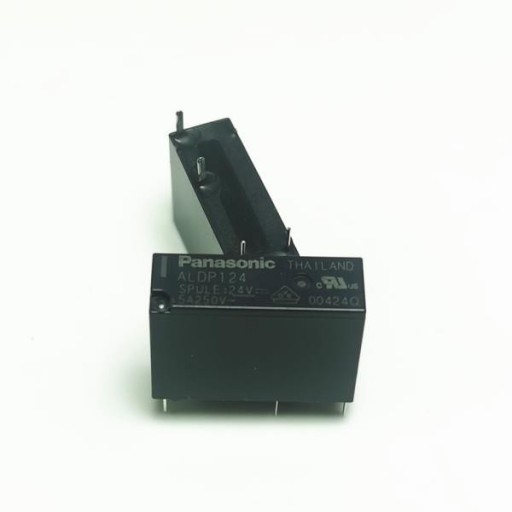

ALDP
|
  20.3x7.0x15 |
1a | 5A250VAC |
|

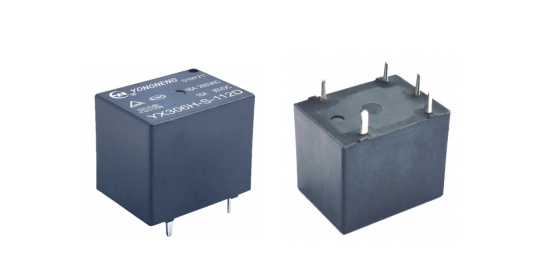

YX306H
|
 20.3*15.4*16.9 |
1A 1B 1C | 16A |
|

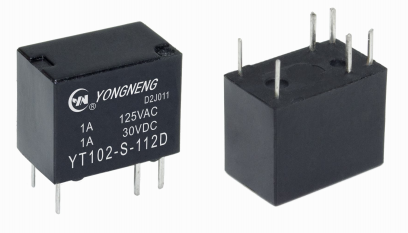

YT102
|
 12.3x7.4x9.9 |
1C | 1A 125VAC/30VDC |
|

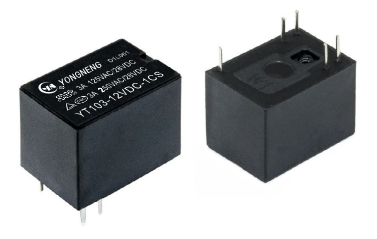

YT103
|
 15.5x10.4x11.3 |
1C | 3A 250VAC/28VDC |
|

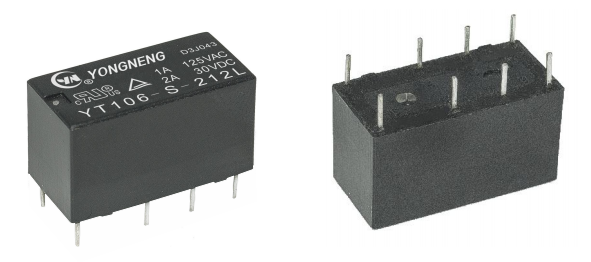

YT106
|
 20.2x10x11.5 |
2C | 1A 125VAC 2A 30VDC |
|

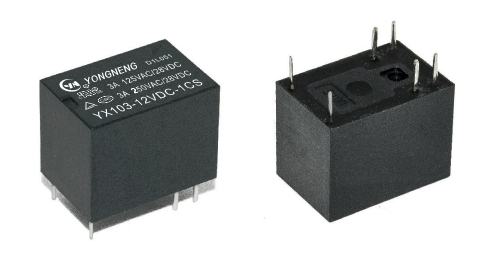

YX103
|
 15.5x10.6x11.8 |
1C | 3A 250VAC/28VDC |
|

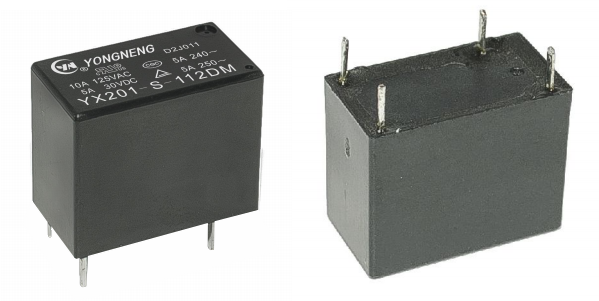

YX201 / YX201H
|
 18.2x10.2x15 |
1A，1C | YX201 : 5A 250VAC YX201H : 10A 250VAC |
|

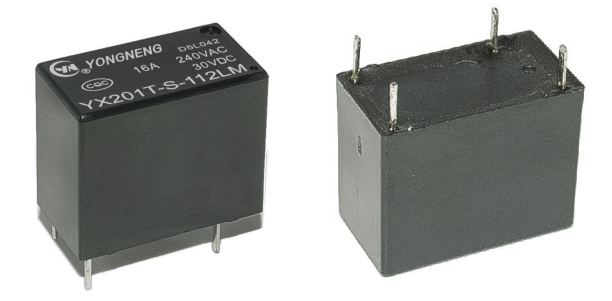

YX201T
|
 18.2x10.2x15 |
1A | 16A 240VAC |
|

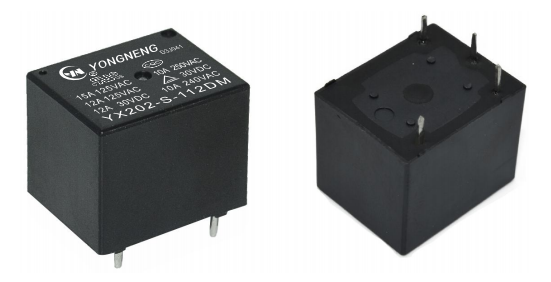

YX202
|
 19.1x15.4x15.5 |
1A 、1B 、1C | 10A 250VAC/30VDC 15A 125VAC |
|

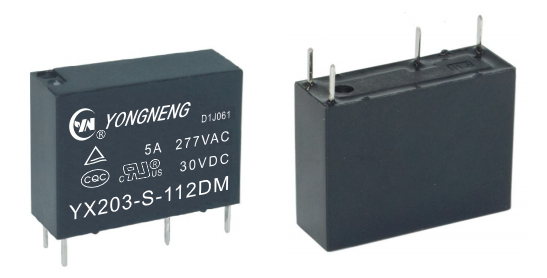

YX203
|
 20.5x7x15.5 |
1A | 5A 277VAC/30VDC |
|

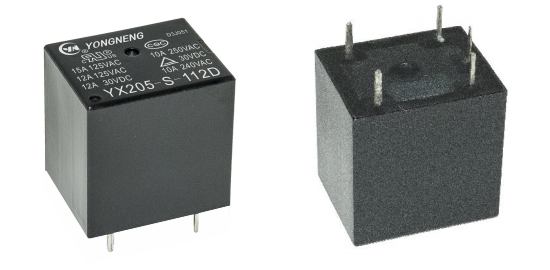

YX205
|
 20.3x16.6x20.3 |
1A 、1B 、1C | 10A 250VAC/30VDC 15A 125VAC |
|

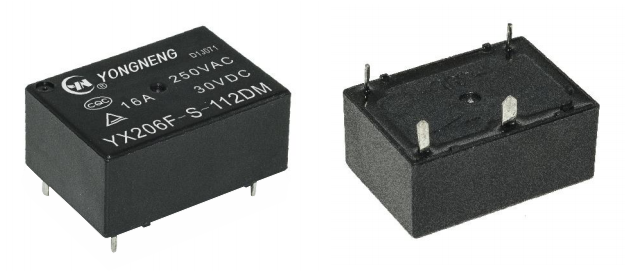

YX206F
|
 23x16.1x10.5 |
1A | 16A 250VAC/30VDC |
|

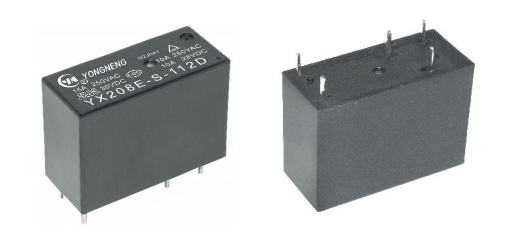

YX208E
|
 29.2x12.8x20.4 |
1A 、1B、1C | 16A 250VAC/30VDC |
|

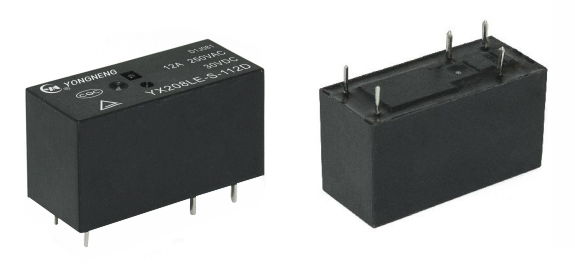

YX208LE
|
 29x12.6x15.7 |
1A 、1B、1C | 12A 250VAC/30VDC |
|

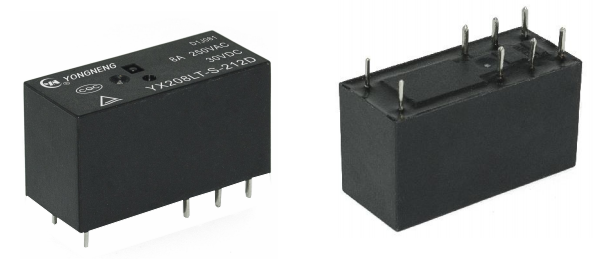

YX208LT
|
 29x12.6x15.7 |
2A 、2B、2C | 8A 250VAC/30VDC |
|

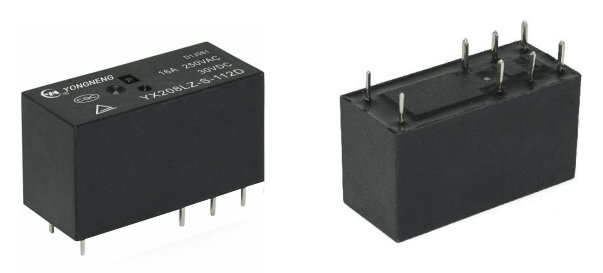

YX208LZ
|
 29x12.6x15.7 |
1A、1B 、1C | 16A 250VAC/30VDC |
|

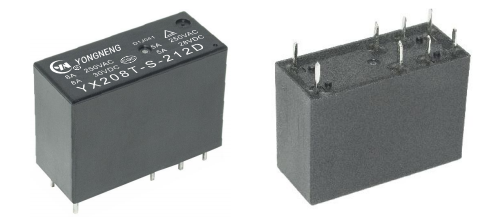

YX208T
|
 29.2x12.8x20.4 |
2A 、2B、2C | 8A 250VAC/30VDC |
|

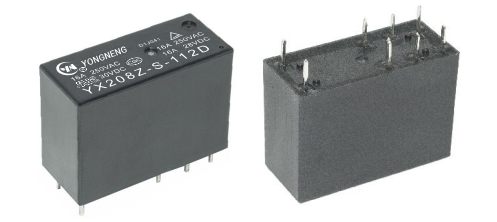

YX208Z
|
 29.2x12.8x20.4 |
1A 、1B 、1C | 16A 250VAC/30VDC |
|

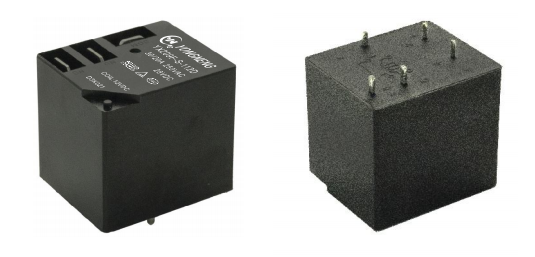

YX209E
|
 27.4x31.5x19.8 |
1A,1B,1C | 40A/30A 250VAC/30VDC |
|
YX209F
|
 27.4x32x28.8 |
1A,1B,1C | 40A/30A 250VAC/30VDC |
